ABB DI830 3BSE013210R1 S800 I/O Digital Input Module 24V SOE 16 ch
Product Details
The DI830 is a 16 channel 24 V d.c. digital input module for the S800 I/O. The input voltage range is 18 to 30 V d.c. and the input current is 6 mA at 24 V d.c. Each input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The module cyclically performs self-diagnostics. Module diagnostics include:
- Process power supply supervision (results in a module warning, if detected).
- Event queue full.
- Time synchronization missing.
The input signals can be digitally filtered. The filter time can be set in the range 0 to 100 ms. This means that pulses shorter than the filter time are filtered out and pulses longer than specified filter time get through the filter.
General info
| Article number | 3BSE013210R1 |
| Type | Digital Input |
| Signal specification | 24 V d.c. |
| Number of channels | 16 |
| Signal type | Current sinking |
| HART | No |
| SOE | Yes |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800 |
Detailed data
| Input voltage range, "0" | -30..+5 V |
| Input voltage range, "1" | 13..30 V |
| Input impedance | 3.2 kΩ |
| Isolation | Groupwise isolated from ground |
| Filter times (digital, selectable) | 0...100 ms |
| Current limiting | Sensor power can be current limited by the MTU |
| Maximum field cable length | 600 meters (656 yards) |
| Event recording accuracy | -0.3 ms...+0.7 ms |
| Event recording resolution | 0.4 ms |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | Typ. 2.3 W |
| Current consumption +5 V Modulebus | Typ. 100 mA, Max 120 mA |
| Current consumption +24 V Modulebus | 0 |
| Current consumption +24 V external | 0 |
Diagnostics
| Front LED’s | F(ault), R(un), W(arning), Channel 1-16 ("0" or "1") |
| Supervision | Process voltage, 1 per group ; Event queue full; Time synchronization missing |
| Status indication of supervision | Module Error, Module Warning, Channel error |
Environment and certification
| CE mark | Yes |
| Electrical safety | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
| Hazardous Location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine certification | ABS, BV, DNV, LR |
| Temperature, Operating | 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
| Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
| Pollution degree | Degree 2, IEC 60664-1 |
| Corrosion protection | ISA-S71.04: G3 |
| Relative humidity | 5 to 95 %, non-condensing |
| Max ambient temperature | 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
| Protection class | IP20 according to IEC 60529 |
| Mechanical operating conditions | IEC/EN 61131-2 |
| EMC | EN 61000-6-4 and EN 61000-6-2 |
| Overvoltage categories | IEC/EN 60664-1, EN 50178 |
| Equipment class | Class I according to IEC 61140; (earth protected) |
| RoHS compliance | DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE compliance | DIRECTIVE/2012/19/EU |
Dimensions
| Width | 45 mm (1.77”) |
| Depth | 102 mm (4.01”), 111 mm (4.37”) including connector |
| Height | 119 mm (4.7”) |
| Weight | 0.22 kg (0.48 lbs.) |
Features and benefits
- 16 channels for 24 V d.c. inputs with current sinking
- 2 isolated groups of 8 channels with voltage supervision
- Input status indicators
- Sequence of event (SOE) functionality
- Shutter filter
FAQ:
Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is DI830 3BSE013210R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
Wisdomlong Technology CO.,LTD Featured Products:
【Yaskawa】Servo Drive / Servo Motor
【Mitsubishi】Servo Drive / Servo Motor
【Honeywell】Module DCS / PLC
【Emerson】DeltaV Module / Servo Motor
【ABB】Input Output Module
【AB】Module / Touch Screen
【GE】IC69 Series PLC/ Fanuc Servo Motor and Drive
|
|

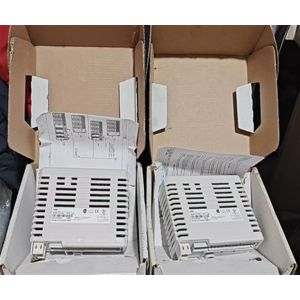

ABB DI830 3BSE013210R1 S800 I/O Digital Input Module 24V SOE 16 ch Images
|
